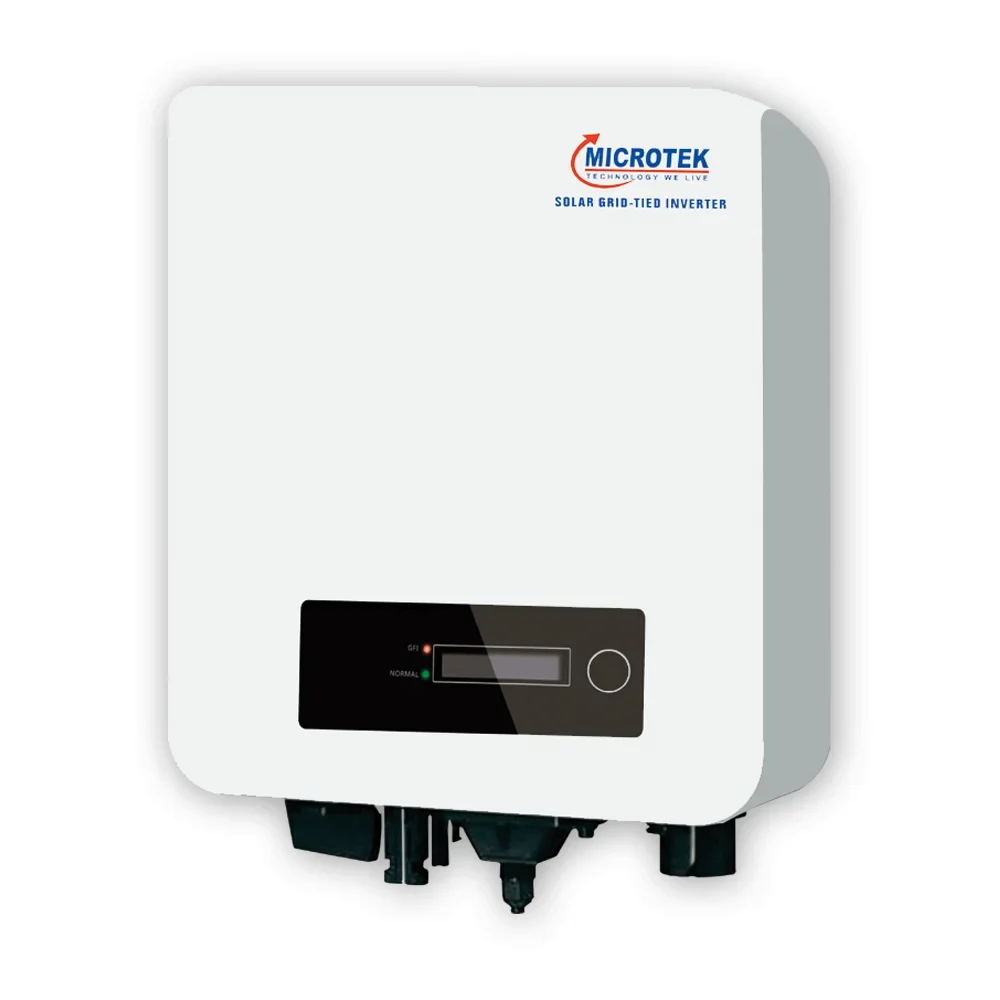

Microtek GT 3.3KW (1PH)

Sale!
Microtek GT 3.3KW (1PH)

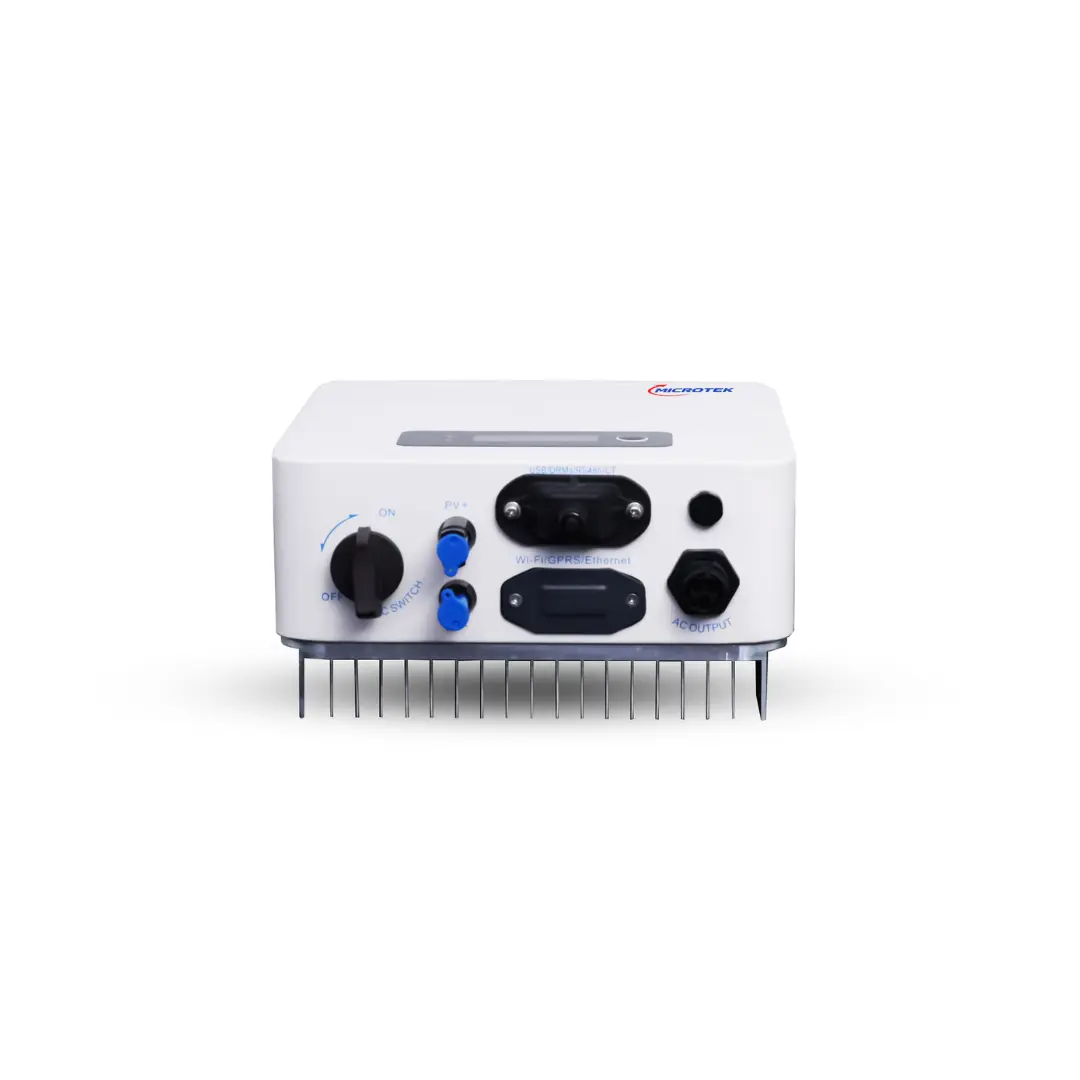

Microtek GT 3.3KW (1PH) - Image 2
Microtek GT 3.3KW (1PH) - Image 3

Microtek GT 3.3KW (1PH)

Original price was: ₹67,500.00.Current price is: ₹60,750.00.

    • Weight6.3kg
    • Output VoltageSame as Input
    • Dimensions (L*W*H)30.3×26.5×11.8

    SALIENT FEATURES:

    • LCD+LED Display, interface Selection.
    • Wi-Fi/RS485 for more flexible configuration.
    • System Monitoring, Low Maintenance Cost.
    • Max 07.2% Efficiency.
    • Real Time Precise MPPT Algorithm for Best Performance.
Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

  • Technical Specifications
INPUT (DC)
MODEL GTI 3.3KW-M11
Max. Input Power 4500W
Max. Input Voltage 550V
Start-up l/PI Rated l/P Voltage 70V / 360V
MPPT Voltage Range 50V-500V
Full Load DC Voltage Range 300V-500V
Max. Input Current per MPPT 12A
Max. DC l/P Short Ckt.Current 15A
No. of MPPT/String per MPPT 1/1
Input Terminal Type MC4/H4
OUTPUT (AC)
Rated Power / Max. AC Power 3300W/3300VA
Rated O/P | Max O/P Current 16A
Nominal Grid Voltage UN/PE,220VAC,230VAC,240VAC
Grid Voltage Range 180VAC-276VAC (According to Local Standards)
Nominal Frequency (Hz) 50Hz/60Hz
Grid Frequency Range (Hz) 45-55 / 54-66Hz
THDi / Power Factor <3% / 1 (Adjustable+0.8)
Power Limit Export Zero Export or Adjustable Power Limit Export (Optional)
EFFICIENCY
Max. Efficiency (DC/AC) 97.70%
European Weighted Efficiency 97.20%
SAFETY PROTECTION
All above Models: Anti-islanding Protection, DC Reverse Polarity Protection, Over Temperature Protection, Over Voltage Protection, Over Current Protection, Leakage Current
