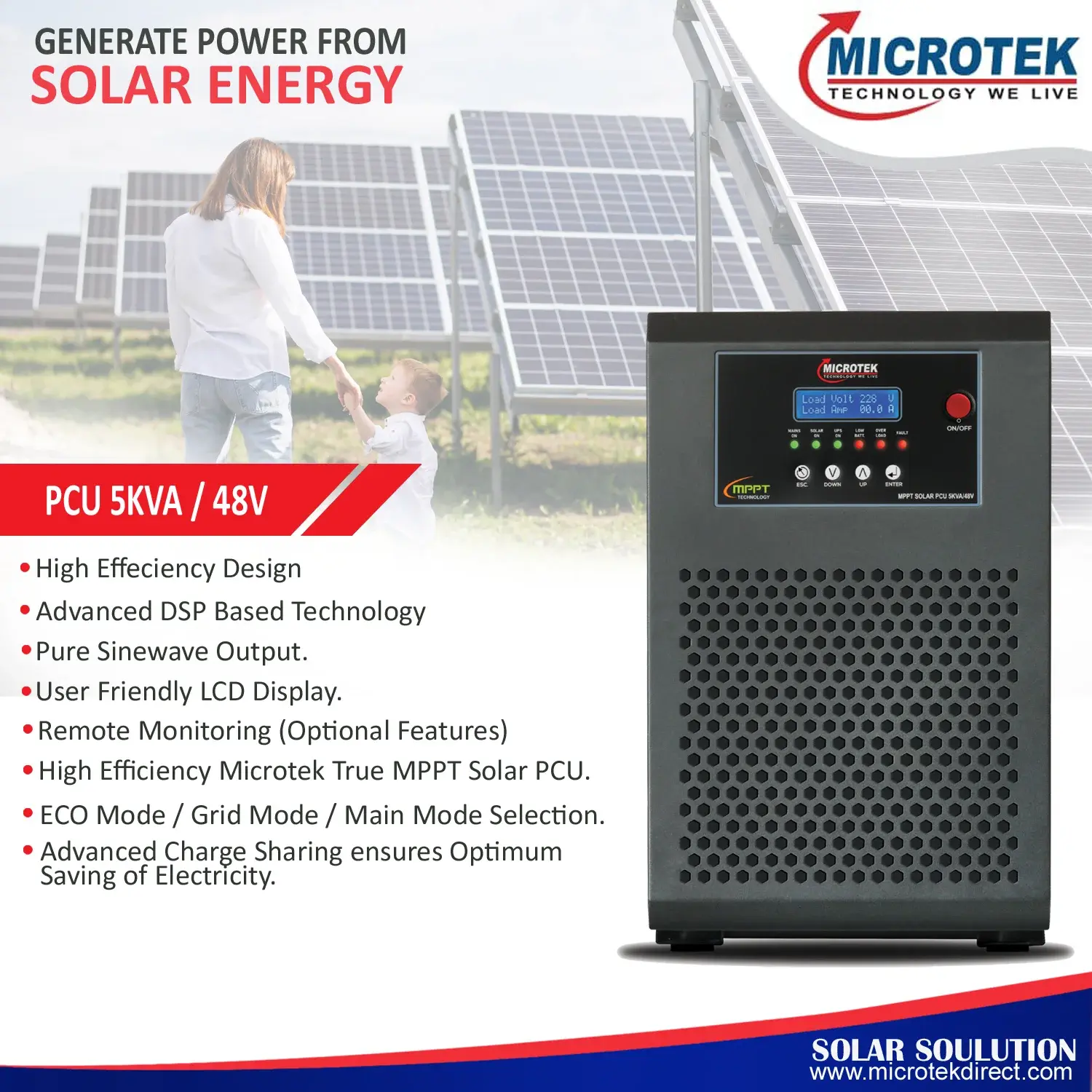

microtek mppt 5KVA / 48V

Description

• • Technical Specifications

  • MODEL	PCU MPPT 5KVA / 48V
    PV Controller Topology	MPPT
    Rated Capacity	5KVA
    Battery Nominal Voltage	48V
    Grid Input Voltage Range	NORMAL MODE: 100V~280V
    	UPS MODE: 180V~260V
    Maximum Solar Input Power(W)	5000W
    Maximum Solar Input Voltage (VOC)	190Voc
    MPPT Oeprating Voltage Range (VMP)	70V~160V
    No. Of Output Phase	1Phase
    Inverter Output Voltage at Nominal DC	230V+2%
    Output Frequency	50Hz+0.5%
    THD	<3%(at Linear Load)
    Switching Element (MPPT Charger)	IGBT
    Peak Charge Controller Efficiency	98%
    Output Waveform	Pure Sinewave
    Transfer Time	NORMAL MODE: Mains to Back-up <40mSec Back-up to Mains <15mSec
    	UPS MODE: Mains to Back-up <12mSec Back-up to Mains <10mSec
    LCD Display Parameters	Battery voltage & Current / Mains Voltage & Frequency PV Power, Total Genaration & Today’s Genaration / Load Power, Load Voltage, Current & Frequency (Inv. Mode Only) / Time & Date Battery Charging / Discharging Status / User Setting & Factory Setting.
    Protection Status Display	Overload, Shrot Circuit, Battery & PV Reverse Polarity Battery Over/Under Voltage, Battery Current Limit, Mains Over / Under Voltage. system Over Temprature & Grid/Load/PV Surge Protection (MOV).
    Clearance on All Side for Installation	Recommended 1 Feet
    Operating Temperature / Realative Humidity	0~50°C / 5%-95% (Non Condensable)
    Weight (Kgs.)	Net: 52.95Kgs / Gross: 55.55Kgs
    Dimension (LxWxH) in MM	448.5x275x611
