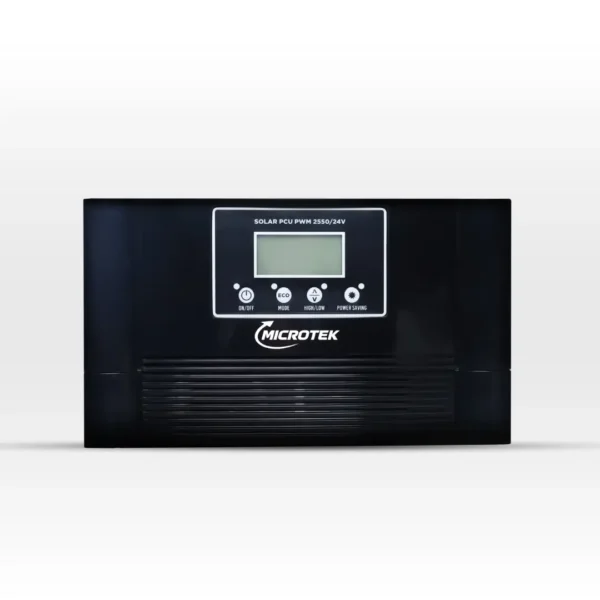

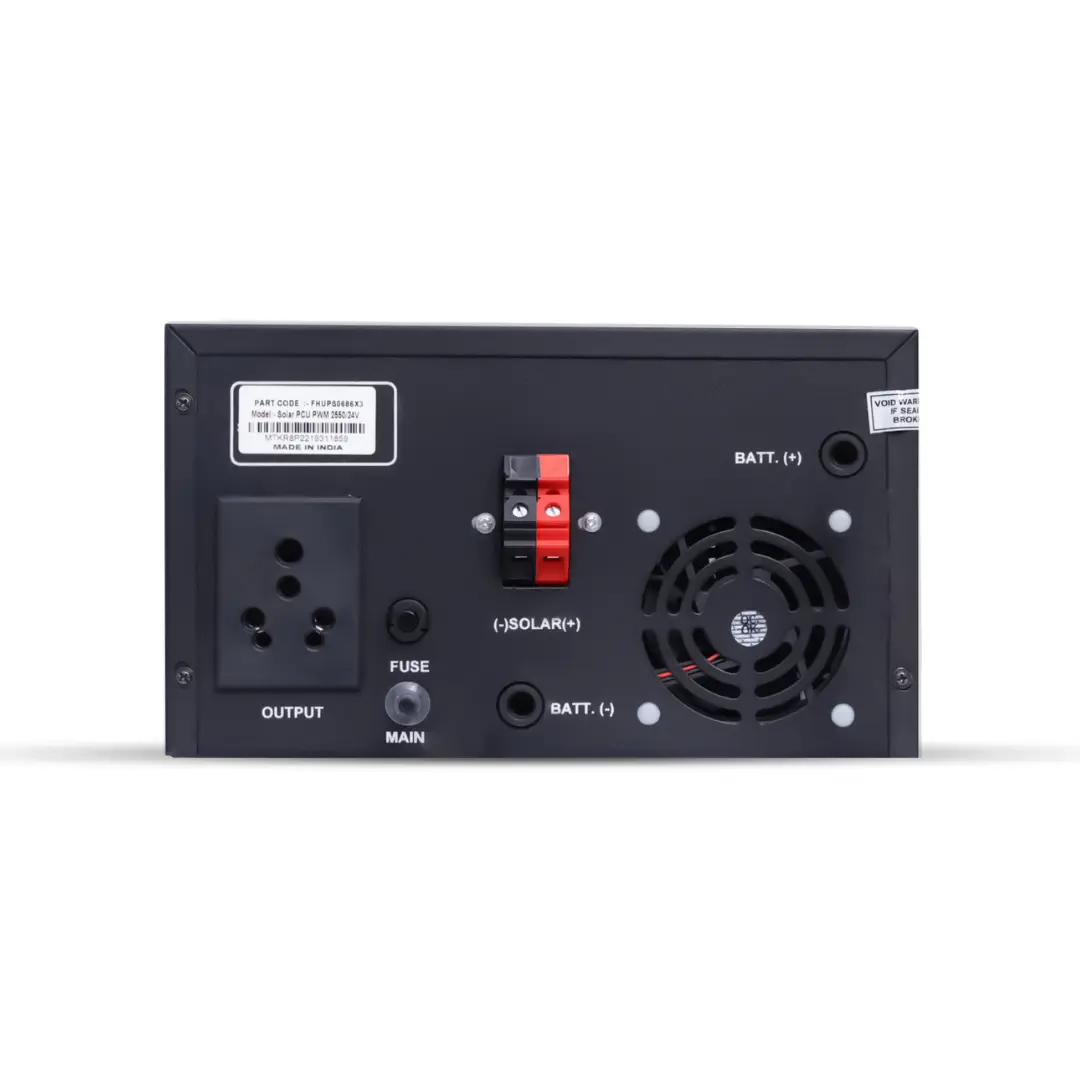

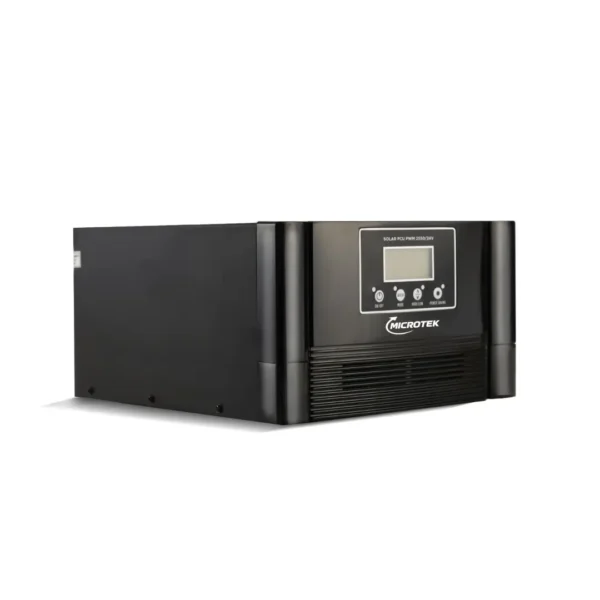

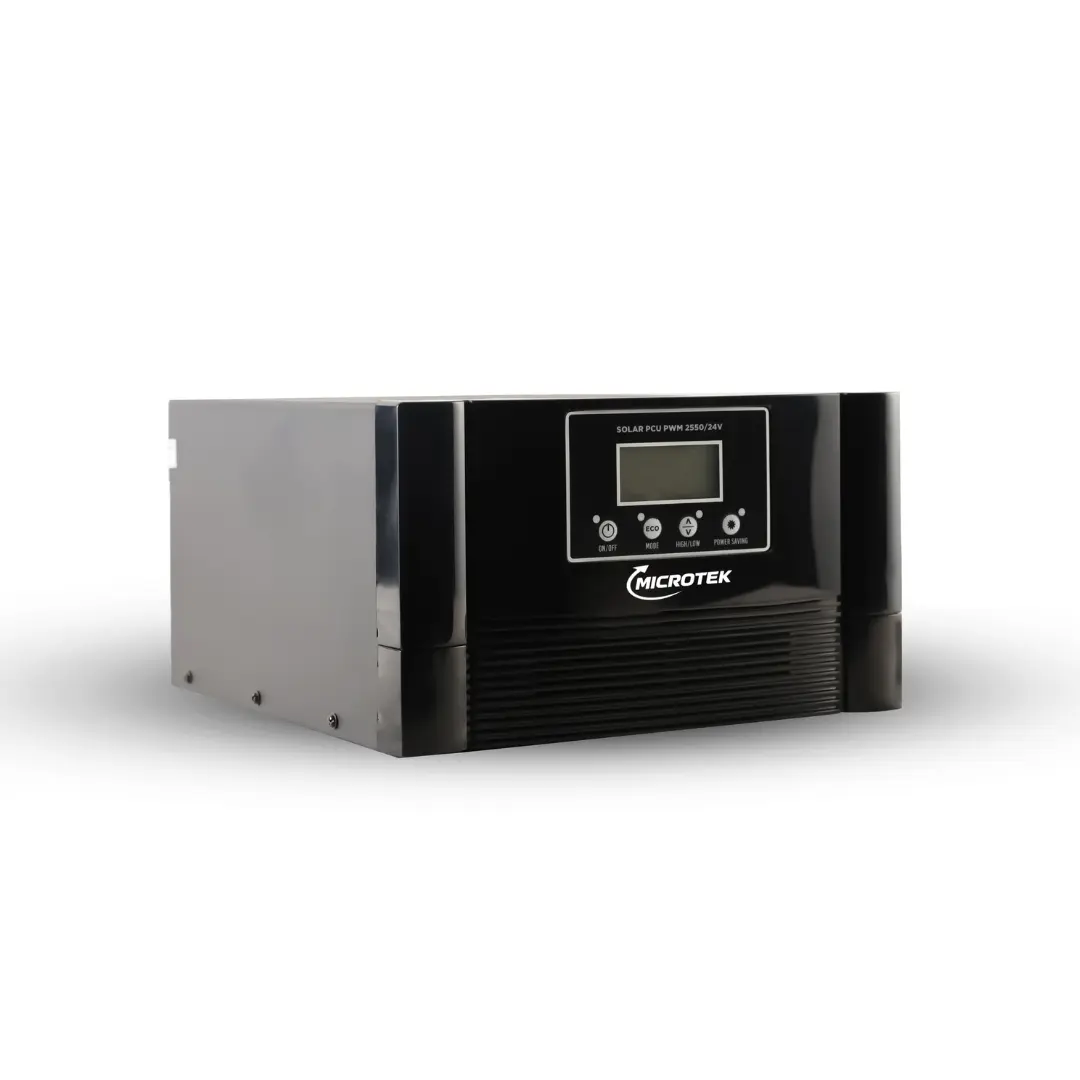

Solar PCU 2550 / 24V

Description

• Technical Specifications

• MODEL	PCU PWM 2550 / 24V
  PV Controller Topology	PWM
  Rated Capacity	2.2KVA
  Battery Nominal Voltage	24V
  Grid Input Voltage Range	NORMAL MODE: 90V+5V~290V+5V
  	UPS MODE: 180V+5V~265V+5V
  Maximum Solar Input Power(W)	1800W
  Maximum Solar Input Voltage (VOC)	49Voc
  Solar Charger Controller	50A
  No. Of Output Phase	1Phase
  Inverter Output Voltage at Nominal DC	230V+3%
  Output Frequency	50Hz+0.1HZ
  THD	<3%(at Linear Load)
  Output Waveform on UPS Mode	Pure Sinewave
  Battery Charging Current: Mains	Constant Charging Approx. 10% of the Rated Battery Current in AH
  UPS Transfer Time	NORMAL MODE: Mains to Back-up <40mSec Back-up to Mains <15mSec
  	UPS MODE: Mains to Back-up <12mSec Back-up to Mains <10mSec
  UPS Overload / UPS Short Circuits Protections	Available
  Reverse Panel Protection	Available
  Thermal Protection	Both in Grid Charging & Backup Mode
  DC Input Volt. High Cut Protection/Recover	Available
  Most Advanced Real Time Clock Technology	RTC ensures Optimum Saving Of Solar Energy
  Operating Temperature	0~45°C
  Weight (Kgs.)	Net: 16.960 / Gross: 18.300
  Dimension (LxWxH) in MM	405x370x260
